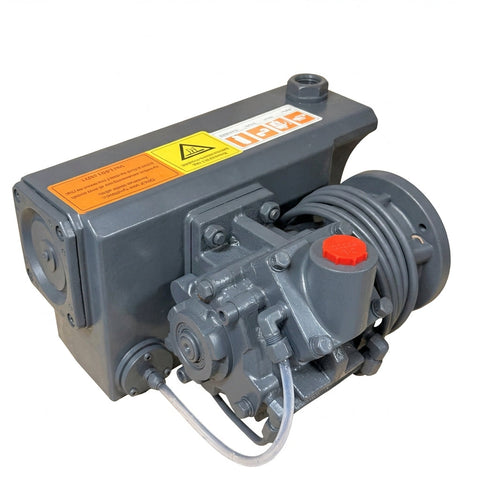

Compact vacuum pump 8 to 125CFM (Electric) 800 to 12 500 taps
Vacuum pump until 0.1"HG of maximum
(29.9'' HG at sea level and varies with atmospheric pressure)
Could work with hydraulic vegetable oil. Built with a compact design to use where saving space is a priority
Rotary vane pump
Oil reclaimer
Radiator
We recommend for a normal installation 10CFM à 15''hg for each 1000 taps
Pump A025
Capacity 21ACFM and at 15''HG 8CFM (800 taps)
# 01281061 3600rpm for motor 1.5hp 56C
Pump A063
Capacity 45ACFM and at 15''HG 15CFM (1500 taps)
# 01281062 1750rpm for motor 3hp 184TC
Pump A100
Capacity 71ACFM and at 15''HG 30CFM (3000 taps)
# 01281091 1750rpm for motor 5hp 184TC
Pump A160
Capacity 113ACFM and at 15''HG 60CFM (6000 taps)
# 01281063 1750rpm for motor 7.5hp 213TC
Pump A200
Capacity 141ACFM and at 15''HG 70CFM (7000 taps)
# 01281090 1750rpm for motor 10hp 215TC
Pump A250
Capacity 177ACFM and at 15''HG 80CFM (8000 taps)
# 01281064 1450rpm for motor 10hp 215TC
Pump A300
Capacity 211ACFM and at 15''HG 100CFM (10000 taps)
# 01281065 1450rpm for motor 15hp 254TC
