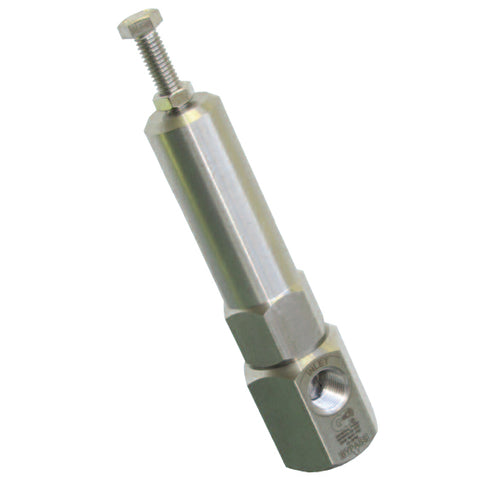

Safety valve QR 2013 13 GPM
Operating Pressure Range:
( # 01041205 100998 ) 250-1000 PSI
( # 01041206 100999) 900-2000 PSI
Maximum Pressure: 2000 PSI
Maximum Flow: 13.0 GPM
Temperature: 190° F
Port Sizes: Inlet 3/8” NPT-F
Outlet 1/2” NPT-F
Dimensions: 7.5” (nom) x 1.86”
Weight: 2.0 lbs.
Material: Stainless Steel, Viton, PTFE
( # 01041205 100998 ) 250-1000 PSI
( # 01041206 100999) 900-2000 PSI
Maximum Pressure: 2000 PSI
Maximum Flow: 13.0 GPM
Temperature: 190° F
Port Sizes: Inlet 3/8” NPT-F
Outlet 1/2” NPT-F
Dimensions: 7.5” (nom) x 1.86”
Weight: 2.0 lbs.
Material: Stainless Steel, Viton, PTFE
Features
• Accuracy - Maintains pressure to within 5% of setting - even with multiple guns!
• Dual Function - Regulates pressure and absorbs pulsation in the system
• Simplicity - The dual function often eliminates the need for an accumulator
• High Operating Temperature - to 190o F
Applications
• Full and self-service wash
• Power washing
• Multiple drop, multiple gun installations
• Most applications where discharge volume is fixed
# 01041206 ( 100999 )
• Accuracy - Maintains pressure to within 5% of setting - even with multiple guns!
• Dual Function - Regulates pressure and absorbs pulsation in the system
• Simplicity - The dual function often eliminates the need for an accumulator
• High Operating Temperature - to 190o F
Applications
• Full and self-service wash
• Power washing
• Multiple drop, multiple gun installations
• Most applications where discharge volume is fixed
Part list 01041205 (100998) 01041206 (100999) (PDF)
# 01041205 ( 100998 )# 01041206 ( 100999 )
