Frequency variator 575Volt 3phase TECO

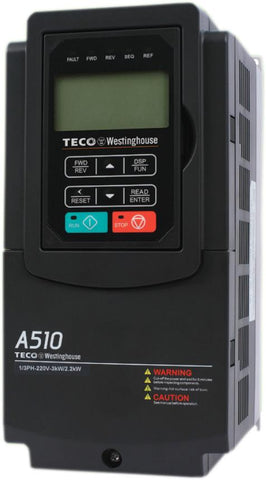

VFD Drive Teco Westinghouse A510
Used to change automatically the speed of the engine Voltage 575 volt JN5 Communication
High Performance AC Drive. Induction AND PM Motor Control
V/Hz, Sensorless Vector and Closed Loop Vector (option card required)
Constant torque and Variable Torque Ratings
PID Control with Sleep and Wake-Up
Compatible with JN5 Communication Software
VT = variable torque (When you need less power when you decrease the speed Ex: pressure washer, vacuum pump, ventilator etc...)
CT = constant torque (When you need the same power in import only speed Ex: Machine maple butter, screw, gearing, etc...)
#01156052 A510-5001-C3-UE = VT 2HP/3AMPS CT 1HP/1.7AMPS
#01156053 A510-5002-C3-UE = VT 3HP/4.2AMPS CT 2HP/3AMPS
#01156054 A510-5003-C3-UE= VT 5HP/5.8AMPS CT 3HP/4.2AMPS
#01156055 A510-5005-C3-UE = VT 7.5HP/8.8AMPS CT 5HP/6.6AMPS
#01156056 A510-5008-C3-UE = VT 10HP/12.2AMPS CT 7.5HP/9.9AMPS#01156057 A510-5010-C3-UE = VT 15HP/14.5AMPS CT 10HP/11.4AMPS
#01156058 A510-6015-C3-UE = VT 15HP/19AMPS CT 15HP/15AMPS
#01156059 A510-6020-C3-UE = VT 20HP/22AMPS CT 15HP/19AMPS
#01156060 A510-6025-C3-UE = VT 25HP/27AMPS CT 20HP/22AMPS
#01156061 A510-6030-C3-UE = VT 30HP/34AMPS CT 25HP/27AMPS
#01156062 A510-6040-C3-UE = VT 40HP/42AMPS CT 30HP/34AMPS
#01156063 A510-6050-C3-UE = VT 50HP/52AMPS CT 40HP/42AMPS
#01156064 A510-6060-C3-UE = VT 60HP/62AMPS CT 50HP/54AMPS
#01156065 A510-6075-C3-UE = VT 75HP/80AMPS CT 60HP/62AMPS
#01156066 A510-6100-C3-UE = VT 100HP/99AMPS CT 75HP/86AMPS
#01156067 A510-6125-C3-UE = VT 125HP/125AMPS CT 100HP/99AMPS
#01156068 A510-6150-C3-UE = VT 150HP/147AMPS CT 125HP/131AMPS
#01156069 A510-6215-C3-UE = VT 200HP/212AMPS CT 150HP/163AMPS
#01156070 A510-6250-C3-UE =CT 200HP/192AMPS
